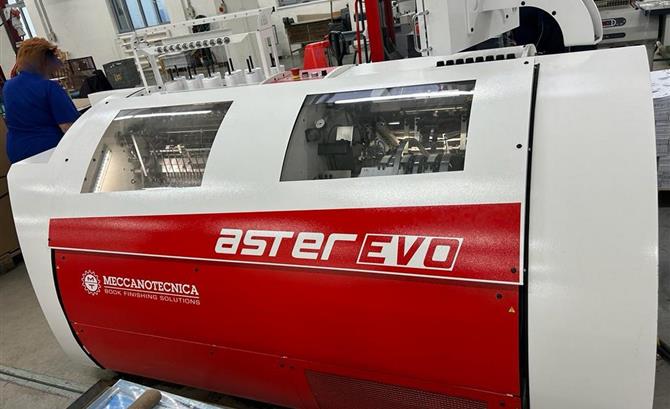

ASTER EVO
Book sewer
#23558
Machine CV Download the offer as PDF
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information

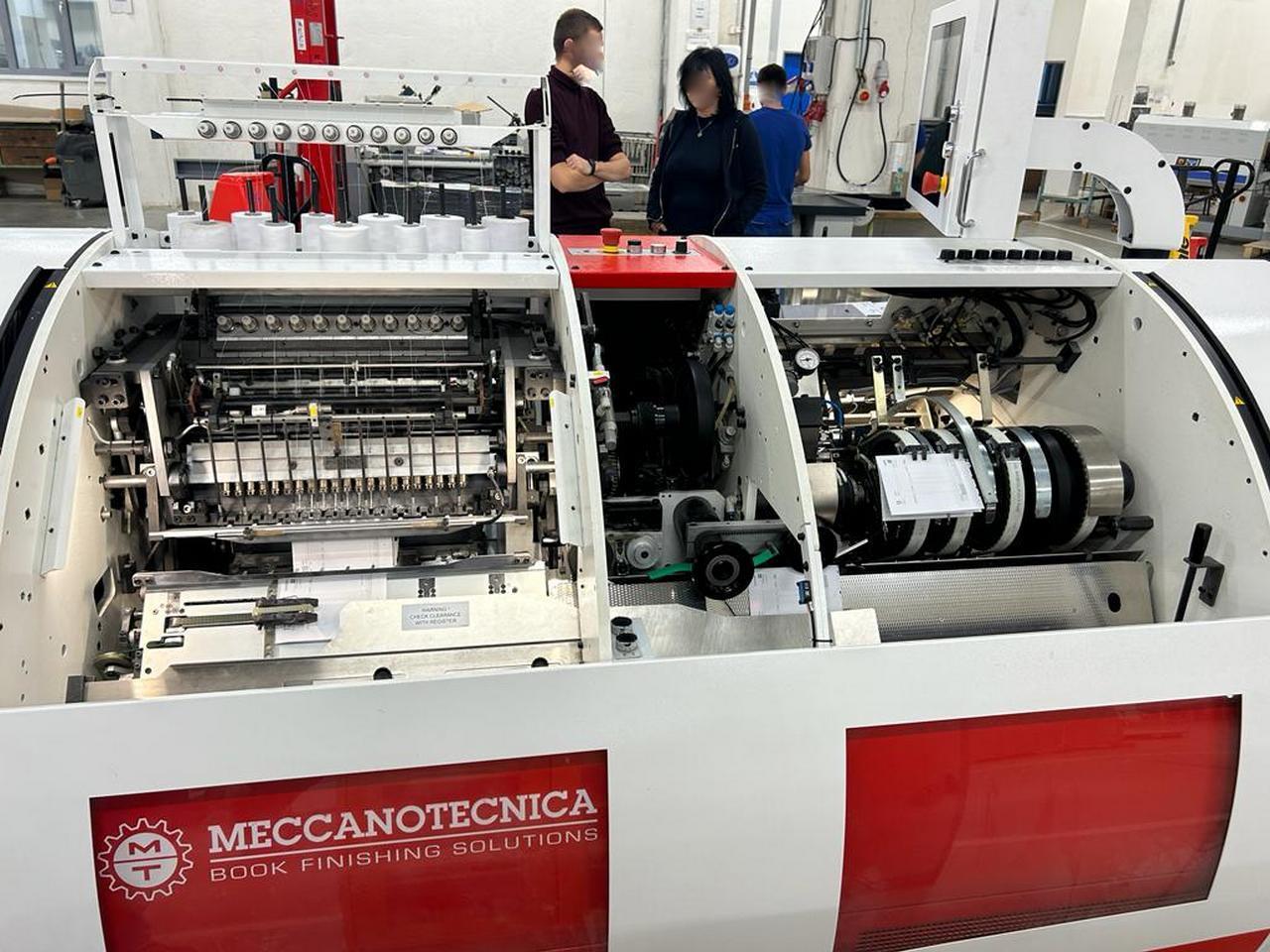

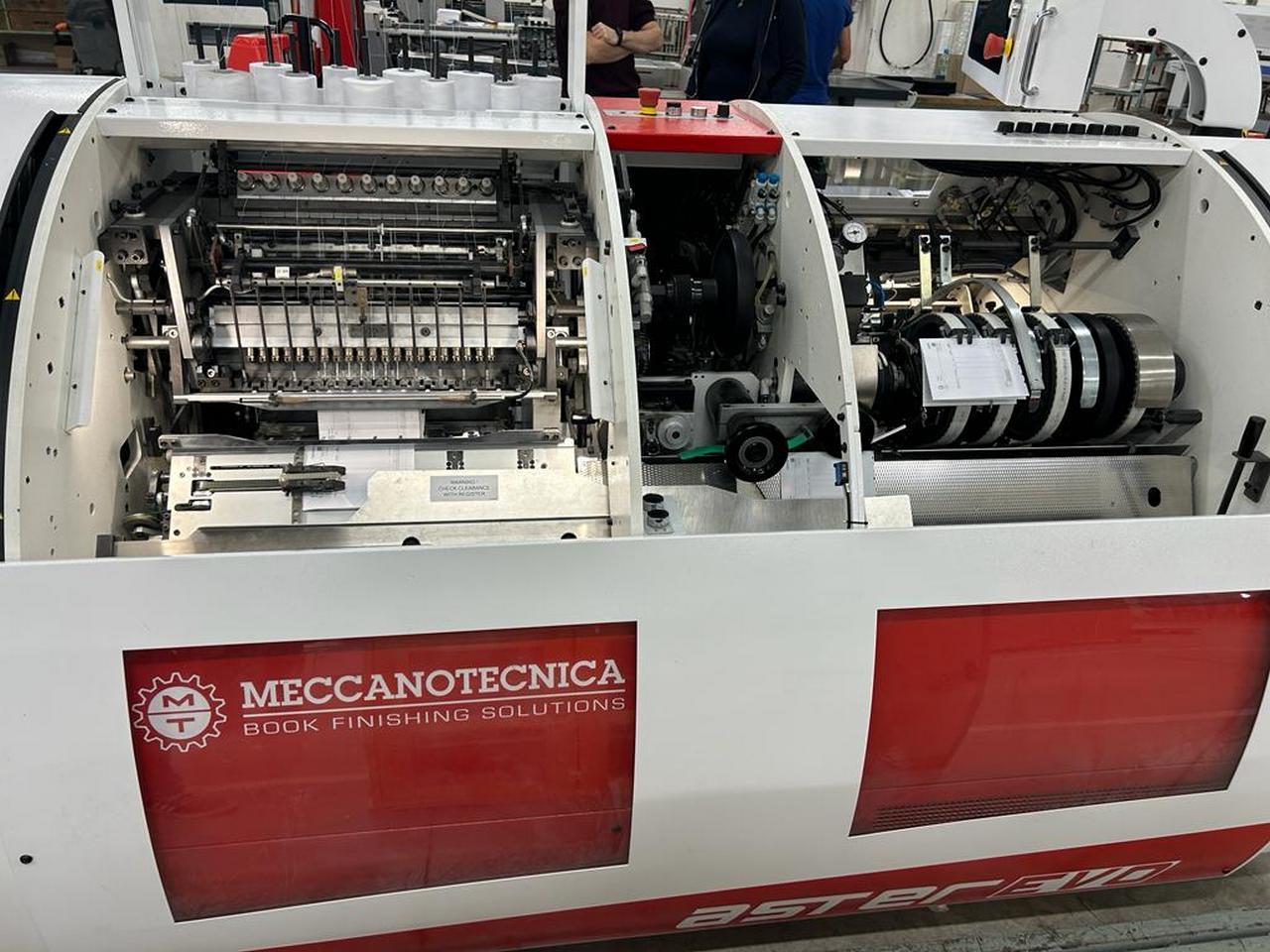

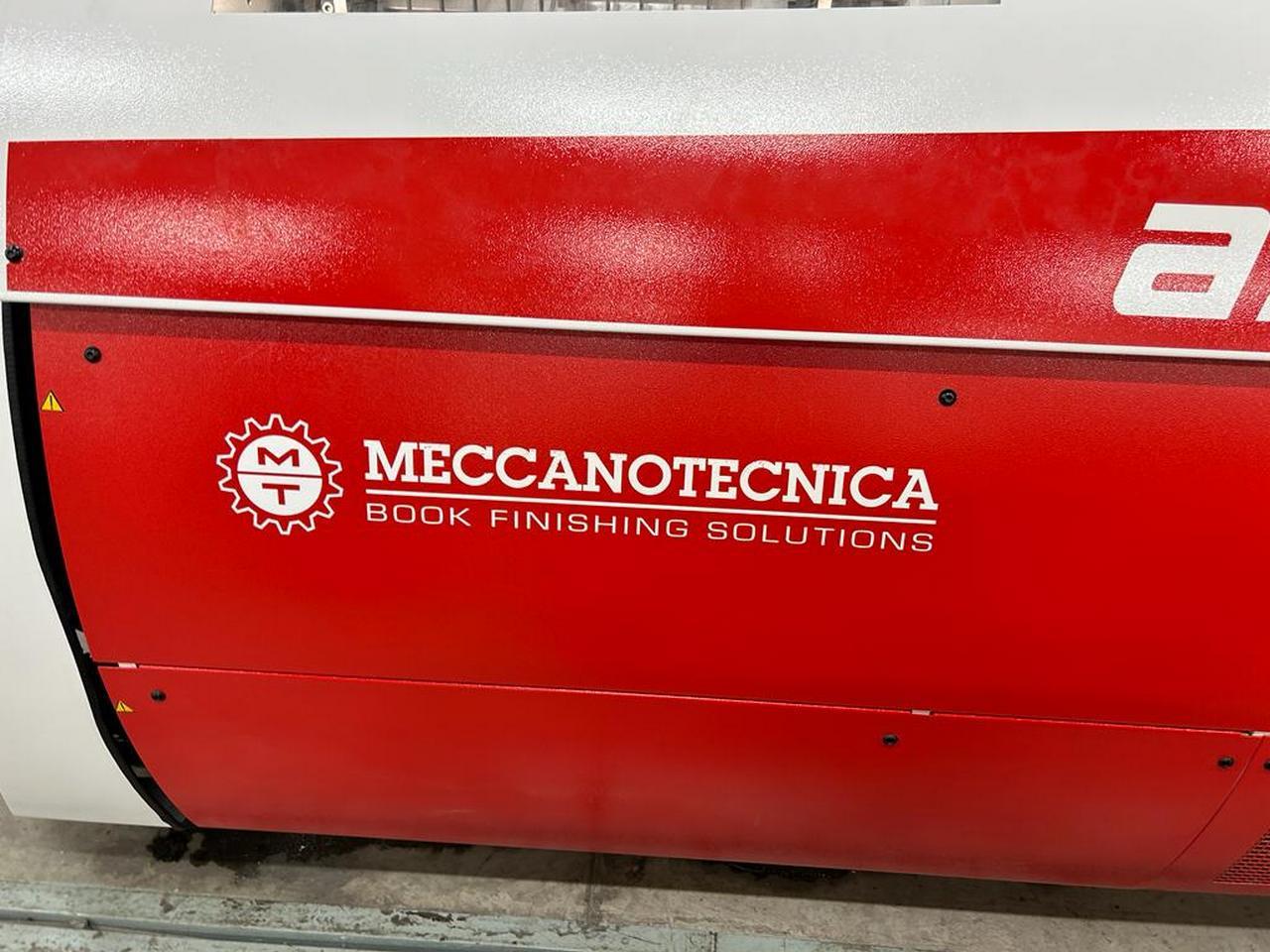

- Manufacturer: Meccanotecnica, s.p.a. Italy
- Production Year: 2022
- Max. Size/Width: 420x320 mm (16.5"x12.6")
- Counter: 6000000 sheets
More Details
- material limits: max. 200 g/m2, min. 60 g/m2
- 11 needles, 10 hooks, 2 sewings - cross and classic
- max speed 200 cycles per minute
- 3D CAD / CAM technology
- Sony CCD camera
- the opening head is equipped with two upper and two lower vacuum opening suction cups
- Cam-drive system
- ASTER EVO drive system
- max. file size: 320 x 420 mm
- min. folder size: 75 x 120 mm (100 x 120 with stacker)
- number of openings: 2 at the top, 2 at the bottom + Fold
- number of sewings positions: 10
- sewing length: 19 mm
- power requirements: 3.20 kW
- standard voltage 3 phase 400 V / 50 Hz or any other required
- air consumption at 6 bar: max. 550 l / min
- air pressure: 7 bar
- automatic feeder (2 + 2) with integrated opener of the folder
- SIEMENS Microbox PC with Windows Embedded system with 15'' color touch screen monitor
- connection for remote service
- automatic speed control
- alternating sewing
- automatic block separation
- sewing cutting device - reduces sewing ends to approx. 10 mm
- sewing breakage check
- automatic central lubrication
- vacuum pump
- drive in an oil bath with a closed gearbox
- GigaLynx – control dual camera system
Condition of the Machine
- Very good condition, well maintained, worn out according to its age.
- Can be seen running.
- Availability: immediately
- Sale Reason: production reduction
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
