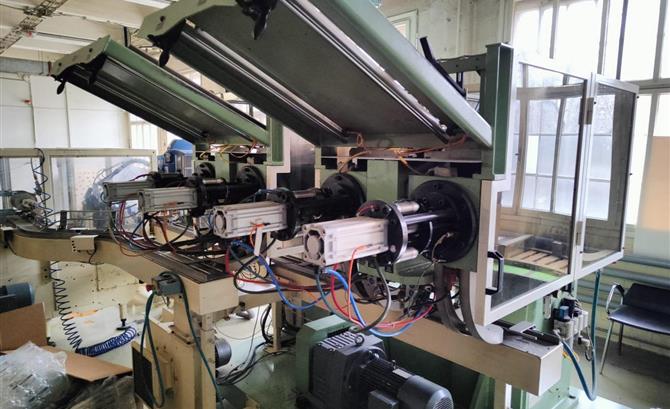

GMA QUATRO 1611-22 + GMA NORIA 1213-35 line
Label Punching Machine
#25517
Machine CV Download the offer as PDF
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Production Year: 2008
More Details

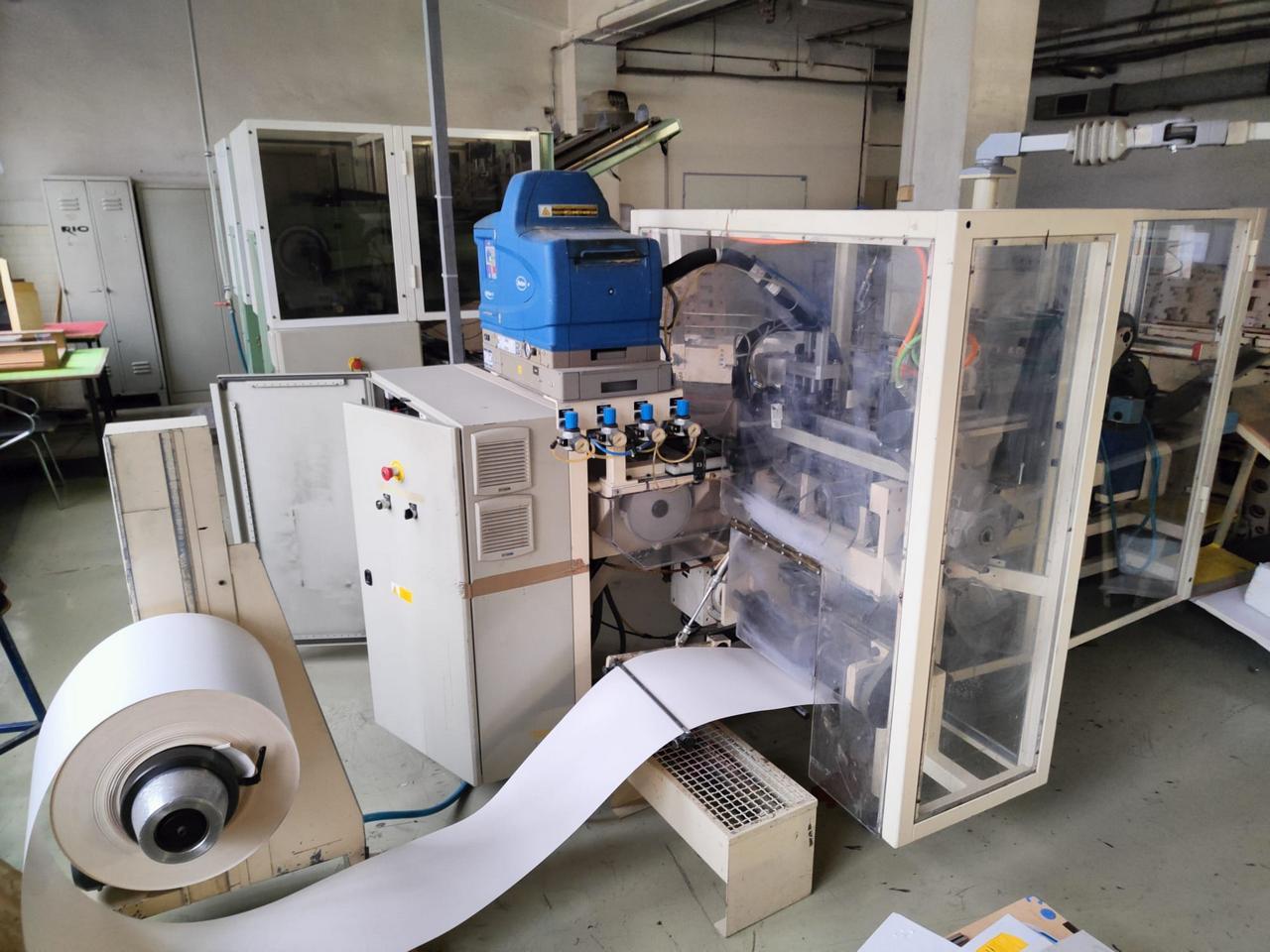

- Flanging and assembling line

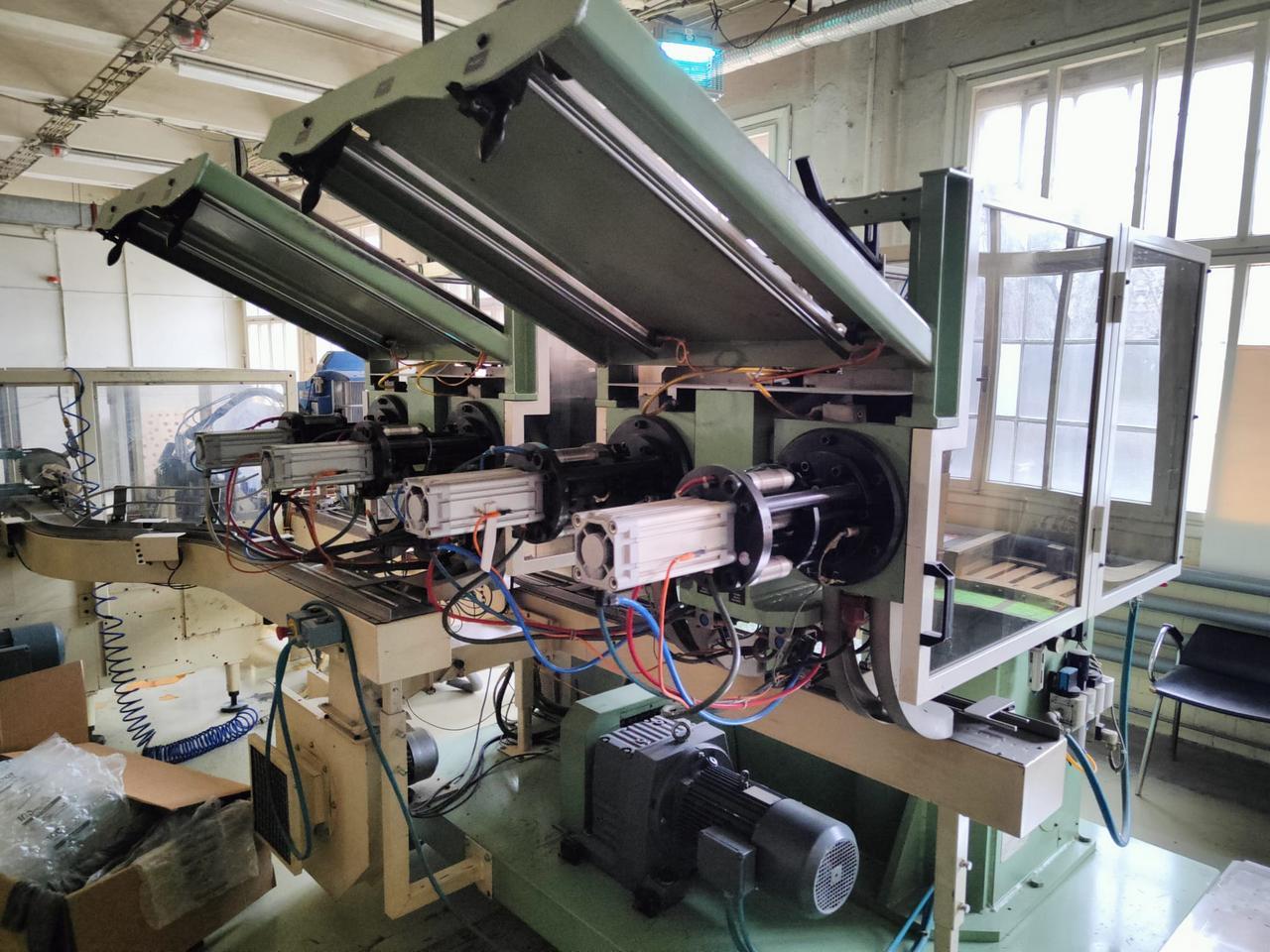

- GMA QUATRO 1611-22 flanging machine in-line with GMA NORIA 1213-35 assembling machine
- 4 punching mandrels (segments)
- various template diameters available
- shaping and gluing equipment including collar

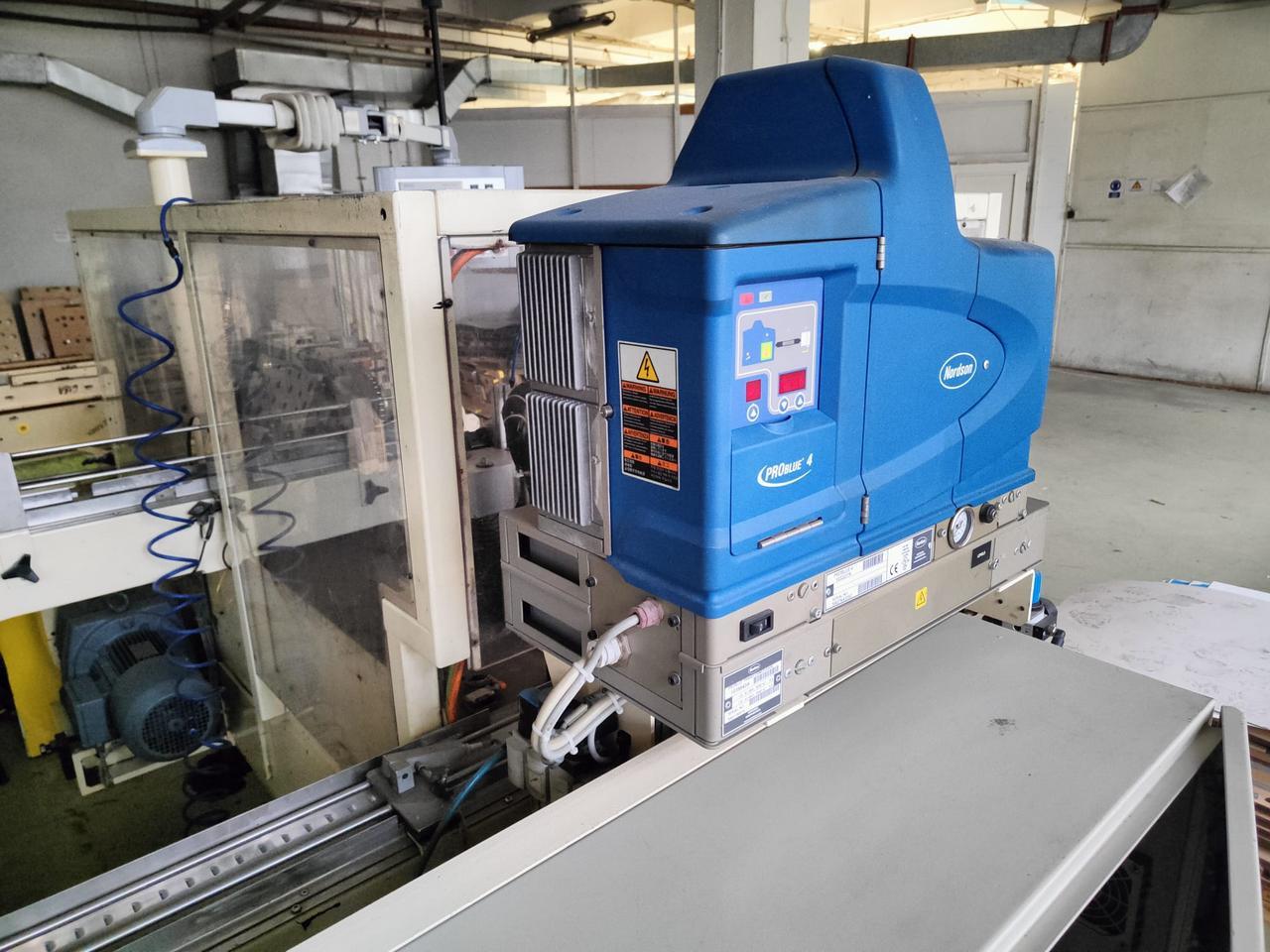

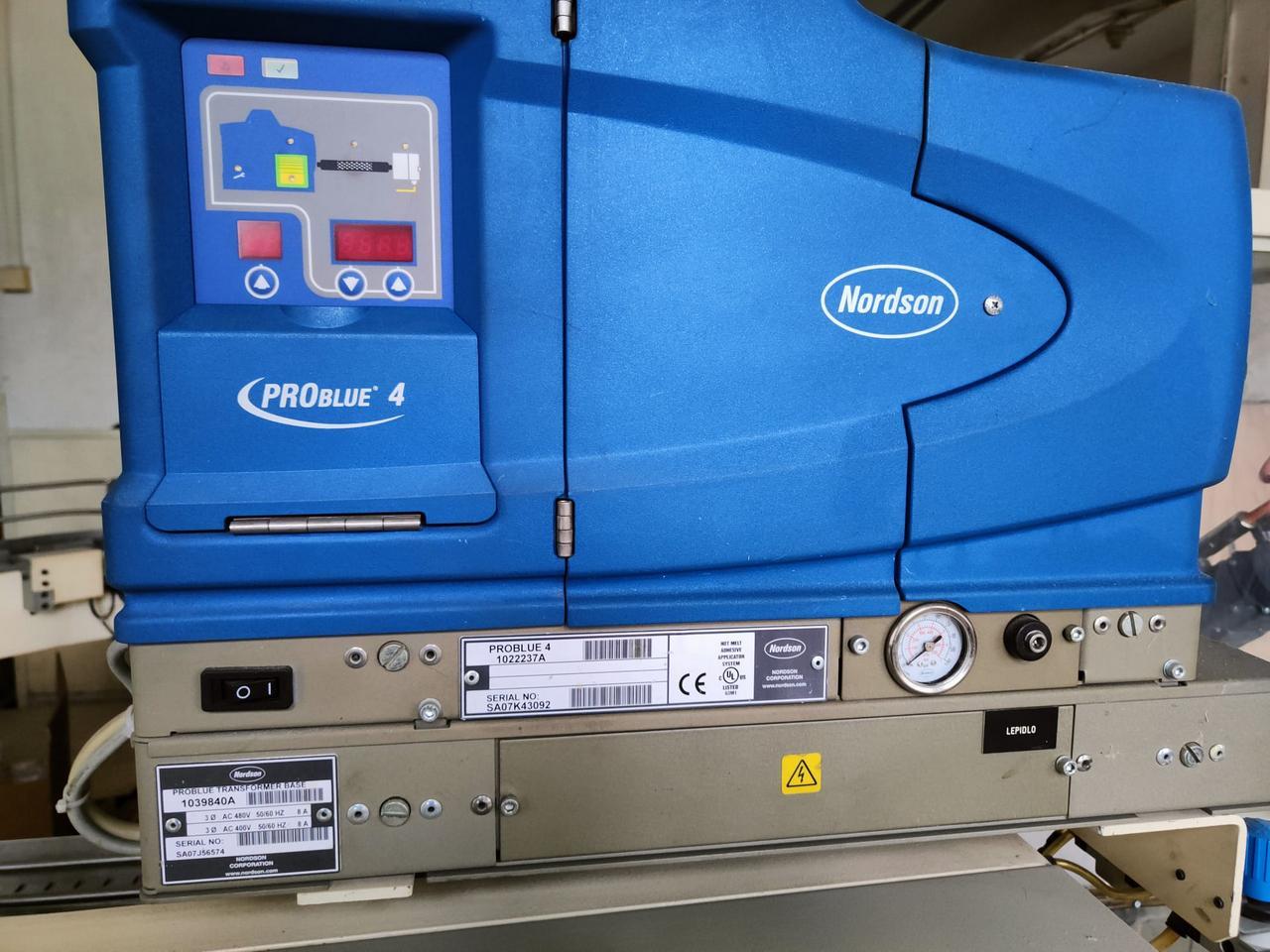

- single-point gluing with Nordson hot melt adhesive

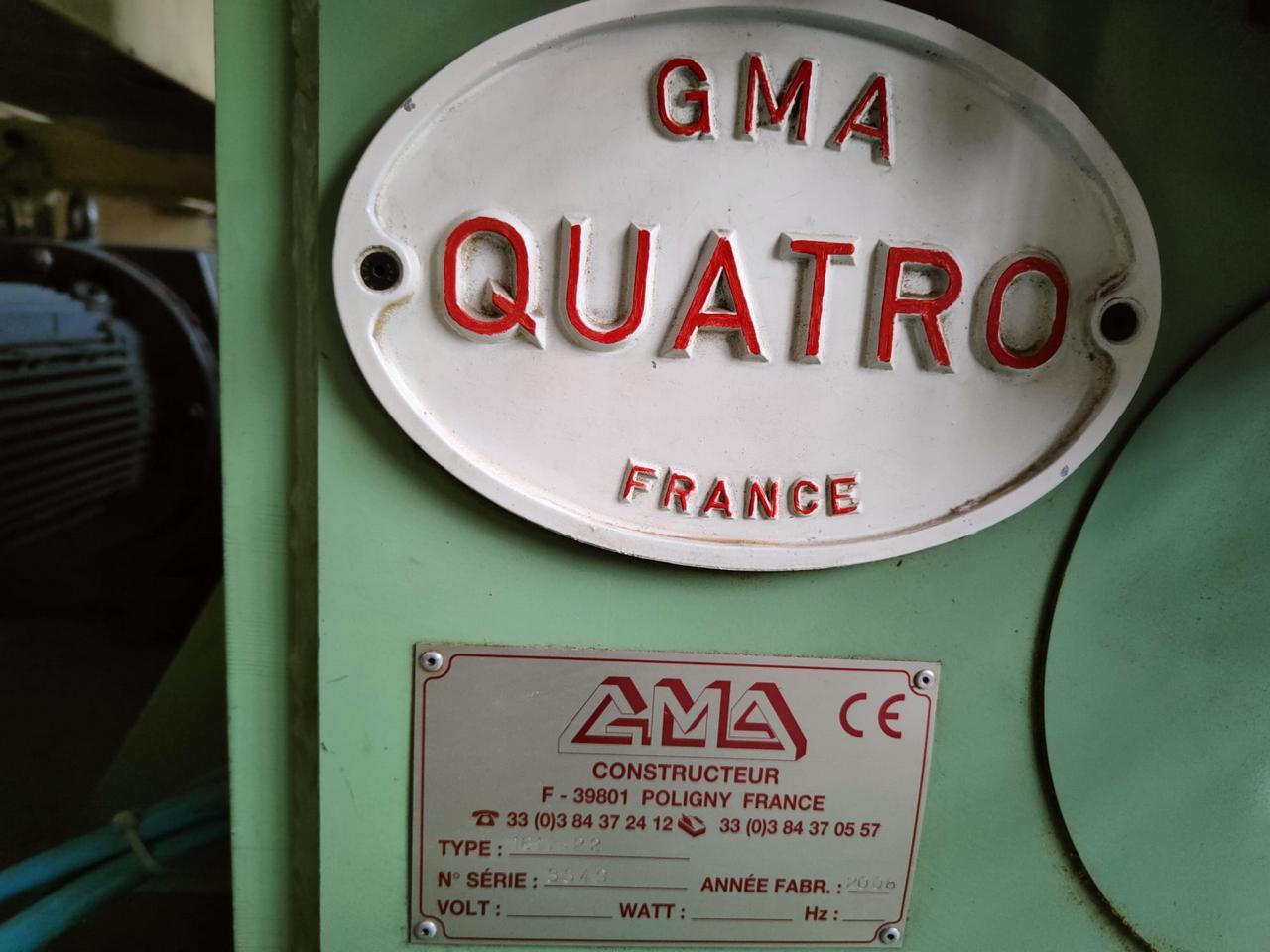

- manufacturer GMA CE, France
- Flanging machine GMA QUATRO 1611-22 operation options:
- MANUAL OPERATION:
- having supplied the magazines with pre-cut blanks
- adjusted the flanging machine on the required box height
- set the disconnecting with handle on I on the side of the cabinet
- to open the lockable air disconnecting switch
- position the key button "automatic/manual" on "manual"
- press on the push-button "reset"
- wait until the heating temperature is reached
- the flanging machine is set into operation : blue light : flickering - fixed
- press on the green button "general ON / OFF"
- the setting into operation of the flanging machine may be carried out either on the cabinet with the push-button
- "stroke/stroke" or from the manual control casing where it is also possible to start the "stroke/stroke" operation
- AUTOMATIC OPERATION
- proceed in the same way as for the manual operation up to the phase "heating temperature standby"
- set the belts into operation using the button "belt ON/OFF" located on the cabinet of the assembling machine
- position the key button "automatic/manual" on automatic
- press on the green button "flanging machine general ON/OFF"
- the flanging machine is set into automatic operation
Condition of the Machine
- Good condition, fully functional.
- Dismantled and stored.
- Availability: immediately
- Sale Reason: purchase of a new machine
- Machinery Europe´s Opinion: First careful owner. The machine is fully operable for sure.
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
